iBasso DX340 DAP
Under the Hood
The iBasso DX340 is their latest DAP offering. I am working on a review, but tend to spend too much time enjoying it instead of reviewing it.
It’s a very full featured DAP, which I will get into in the review.
But two very nice features are:
- Removable/swappable amp cards.
- Reasonably easy replaceable battery.
I previously owned the DX180, iBasso’s first offering with a removable back plate and replaceable battery.
I took a peek under the hood on the DX180, so it only seemed right to open up the DX340 for a look.
There is a metal plate on the back of the player beside the volume knob.
This needs to be removed.

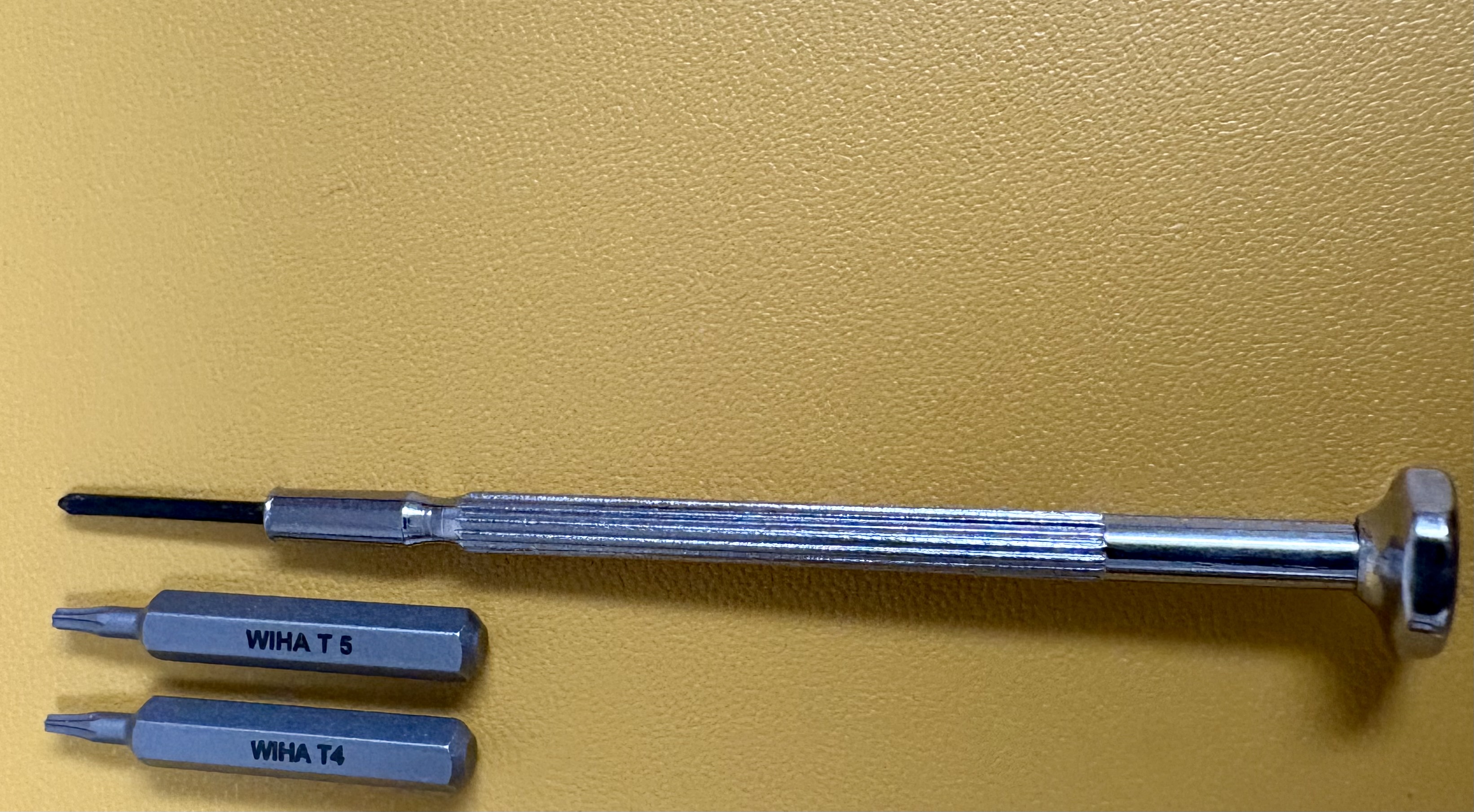

You will need. T4 and T5 driver to remove the two screws.
T4 for top screw, T5 for bottom screw.
(Top screw is also longer than bottom screw, fyi)
The plate has a reasonably precise fitment. I found tapping the back of the player gently against my hand worked to dislodge it.

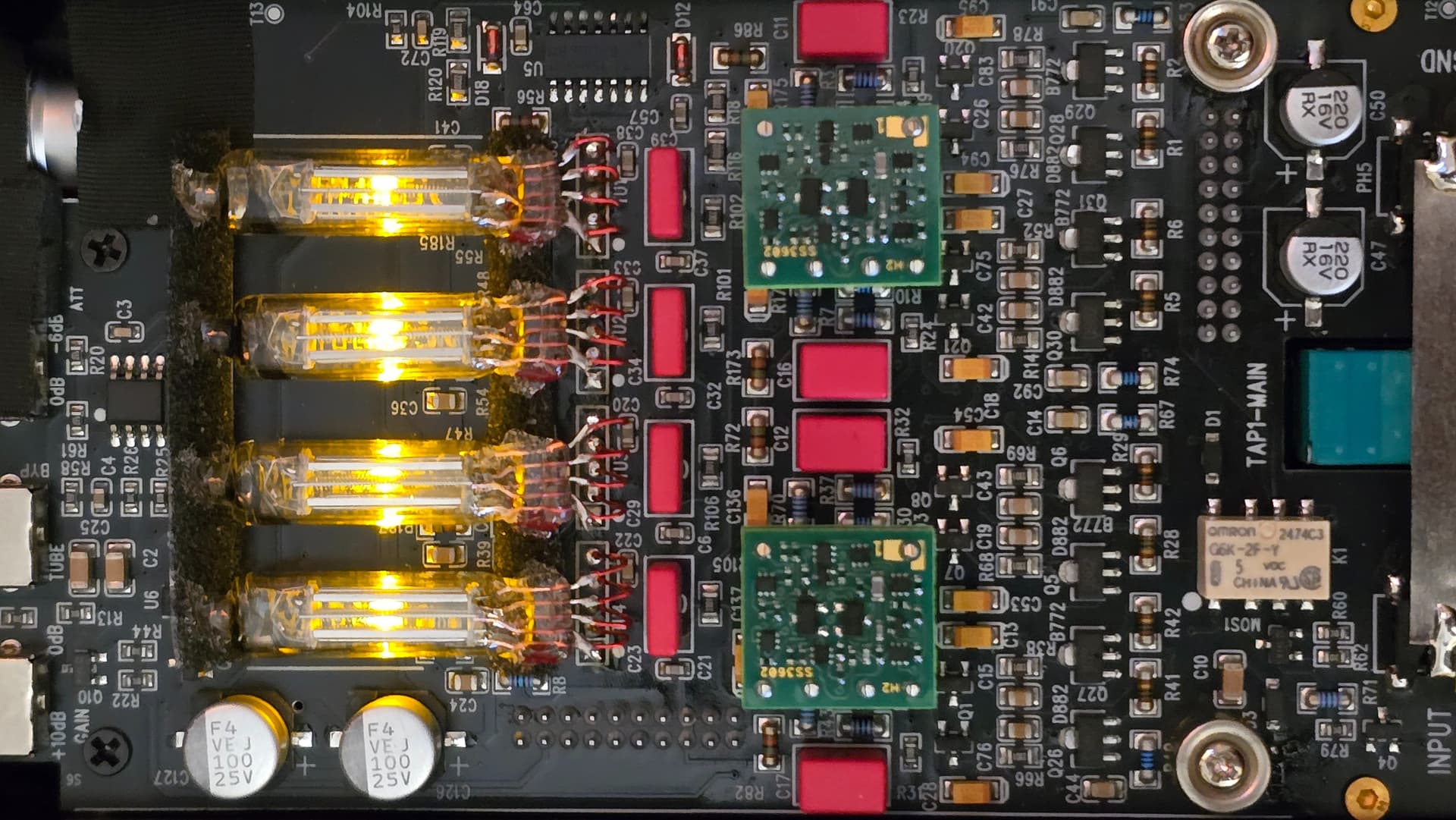

The amp card also needs to be removed.
Two T4 screws hold it in place.
It slips out easily once the screws are removed.
There are two screws inside the amp card bay holding the back plate in place. You will need a very fine Phillips tip jewellers driver to remove these.
Magnetized driver advised, especially for reassembly, the screws are 3-4 cm deep in the bay.
(note: Phillips is regionally what we call the X shaped slot for screwdriver. Not sure what the referred to globally)

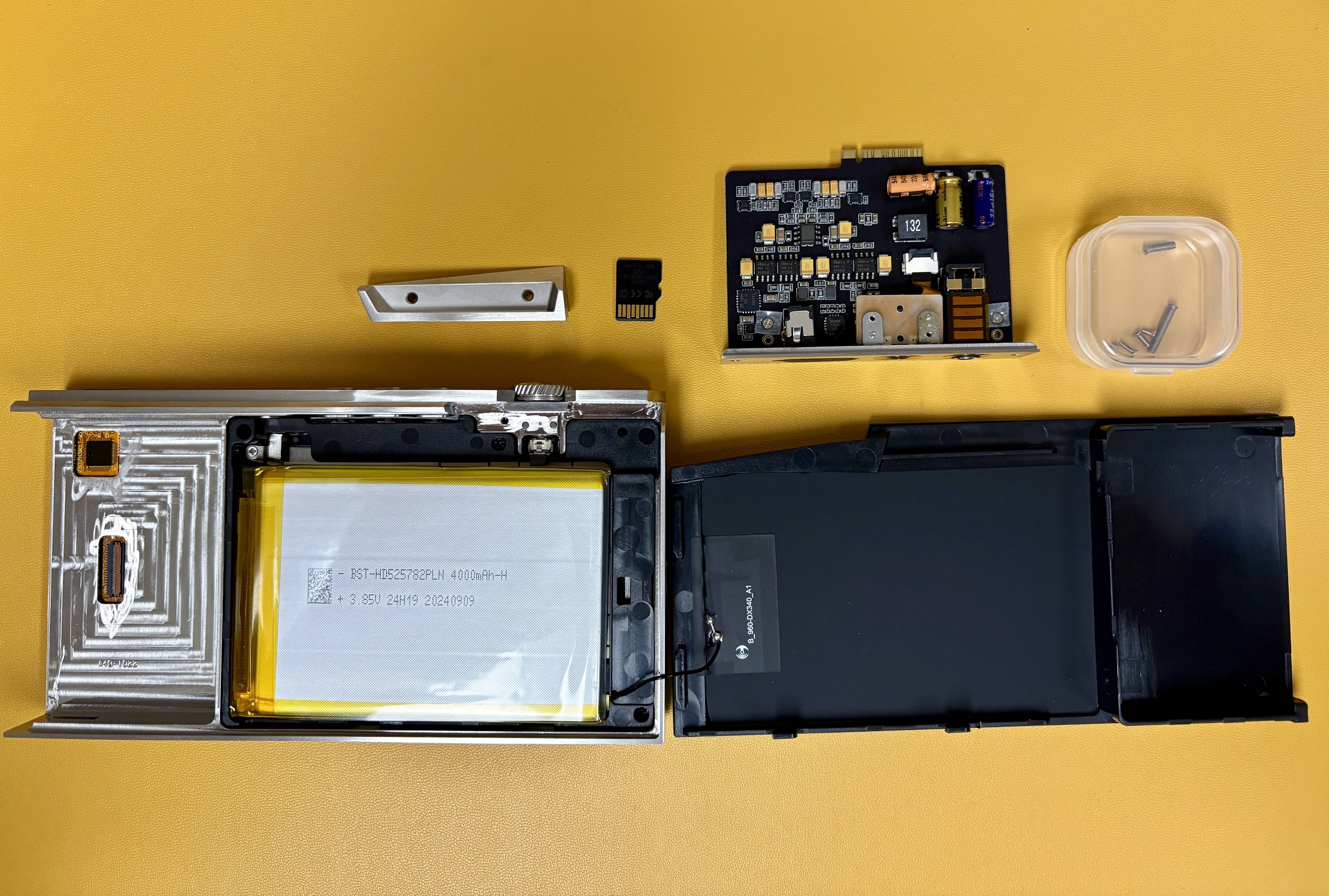

After removing all the screws slide the backplate a few mm down toward the bottom of the player, and gently lift it off. (There is ground wire attached to the backplate, so be careful)

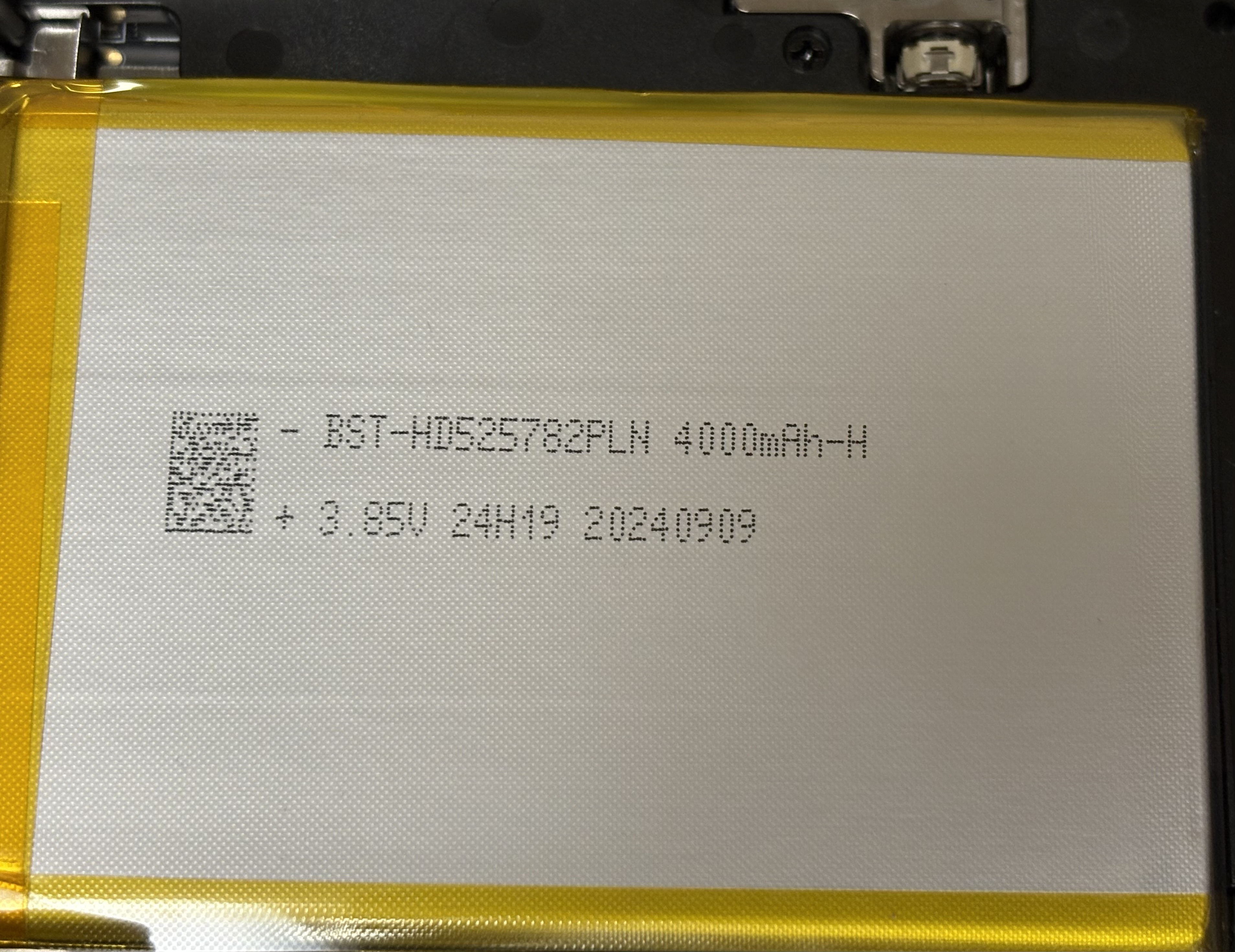

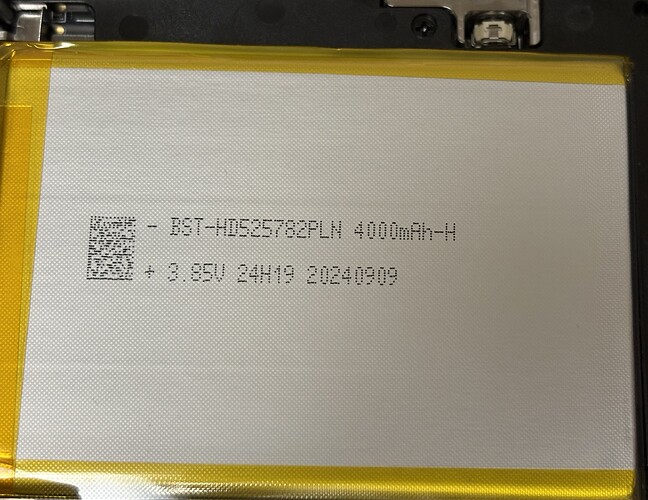

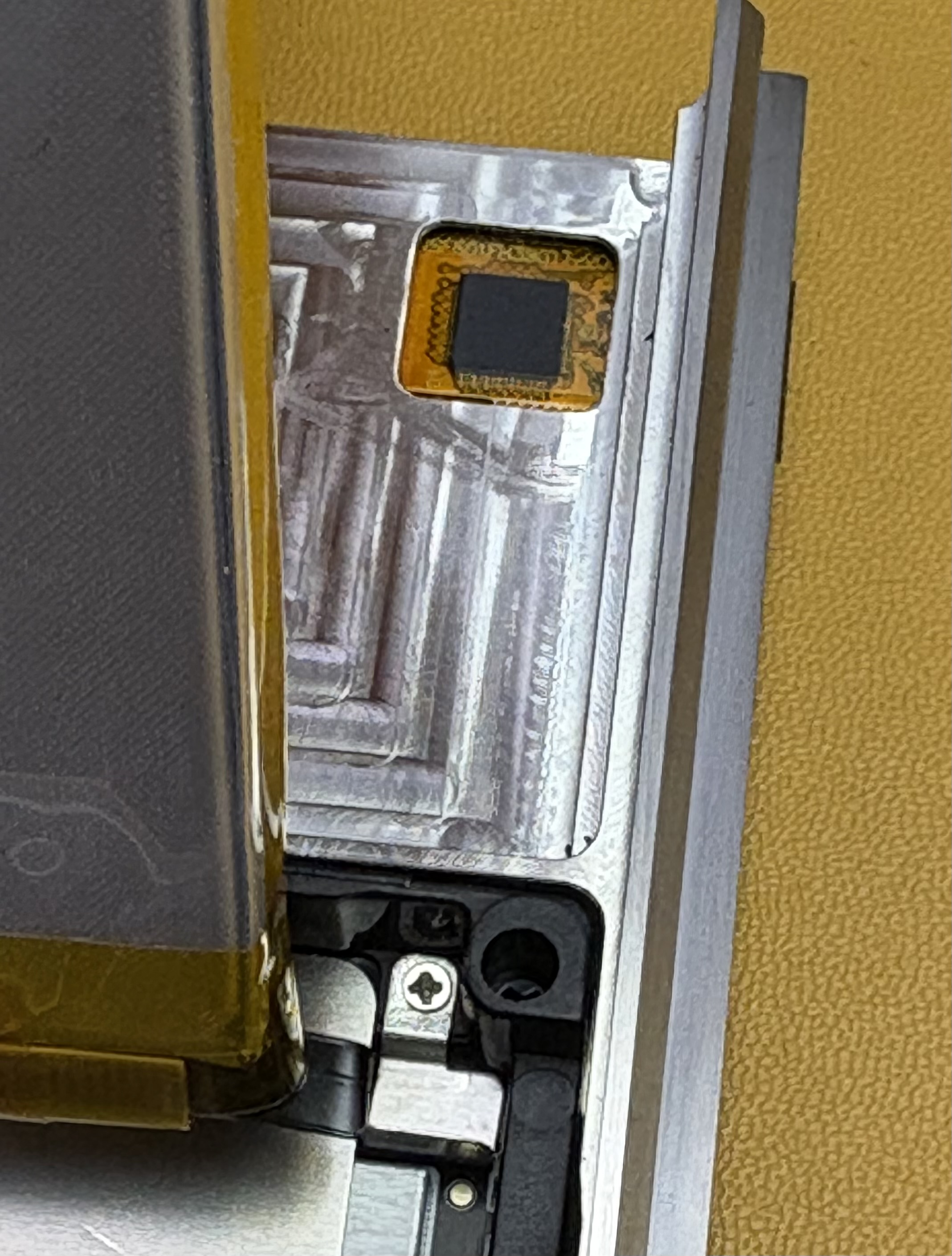

Once the backplate is removed the battery is right there.
You can lift it out and see the cable.
The Battery connector is held in place with a screw. My curiosity was satisfied at this point, so I didn’t remove the screw, or try to disconnect the battery.
I’m drawing an assumption here that the connector is proprietary, so the battery would likely need to be purchased from iBasso, but, I’m impressed that iBasso is designing DAPs with user replaceable batteries, and hope other manufactures take note and follow suit.
