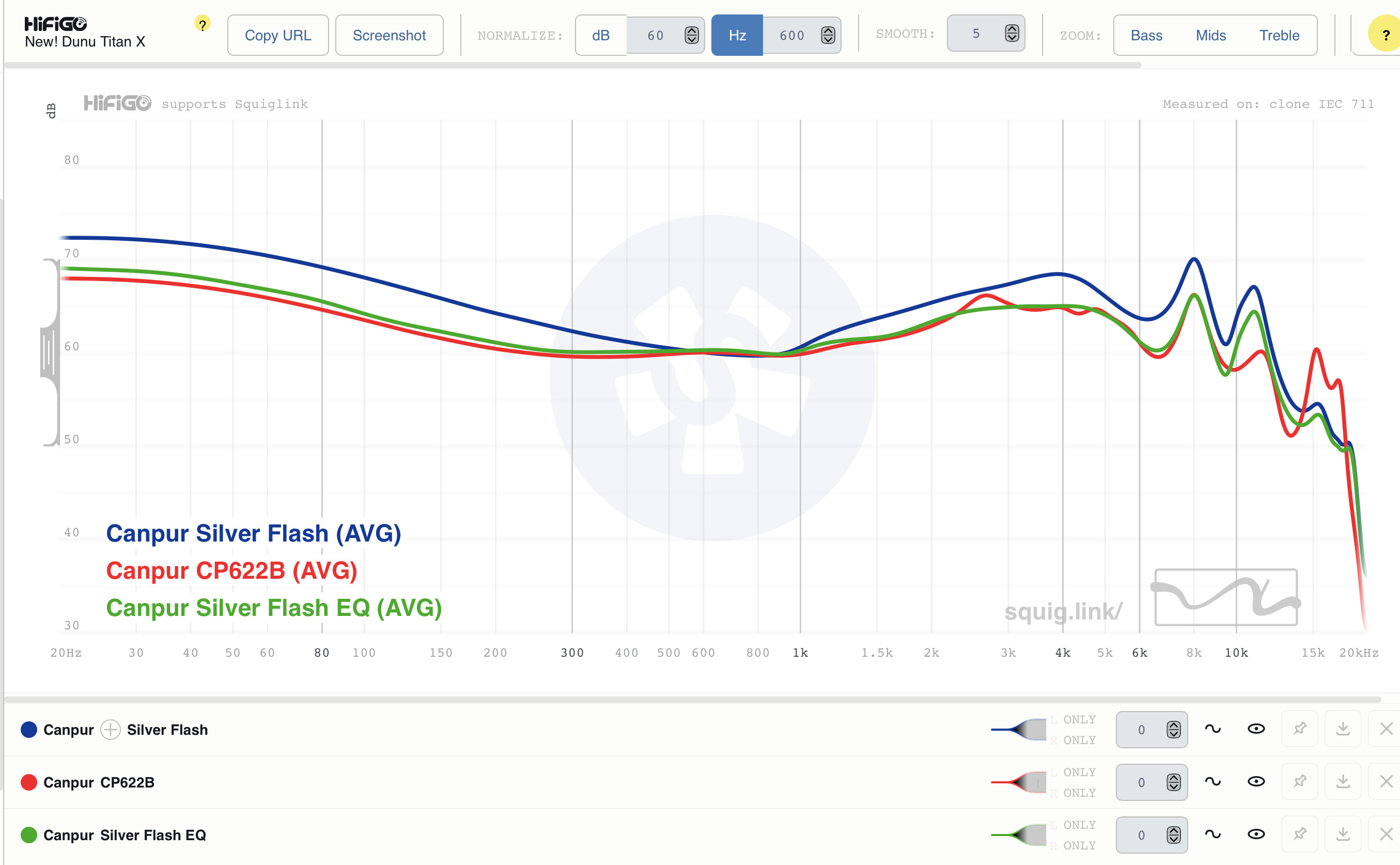

In actuality, PEQ is the way to save all of us all of the money. It’s just a fact. Looks like you really dialed them in! They must sound great. The bass level looks damn near perfect on the graph!

4 Likes

Sometimes tracks with less than stellar bass I hear some bleed but again only a dB or so pulled out simply makes the mids bloom in the best of ways.

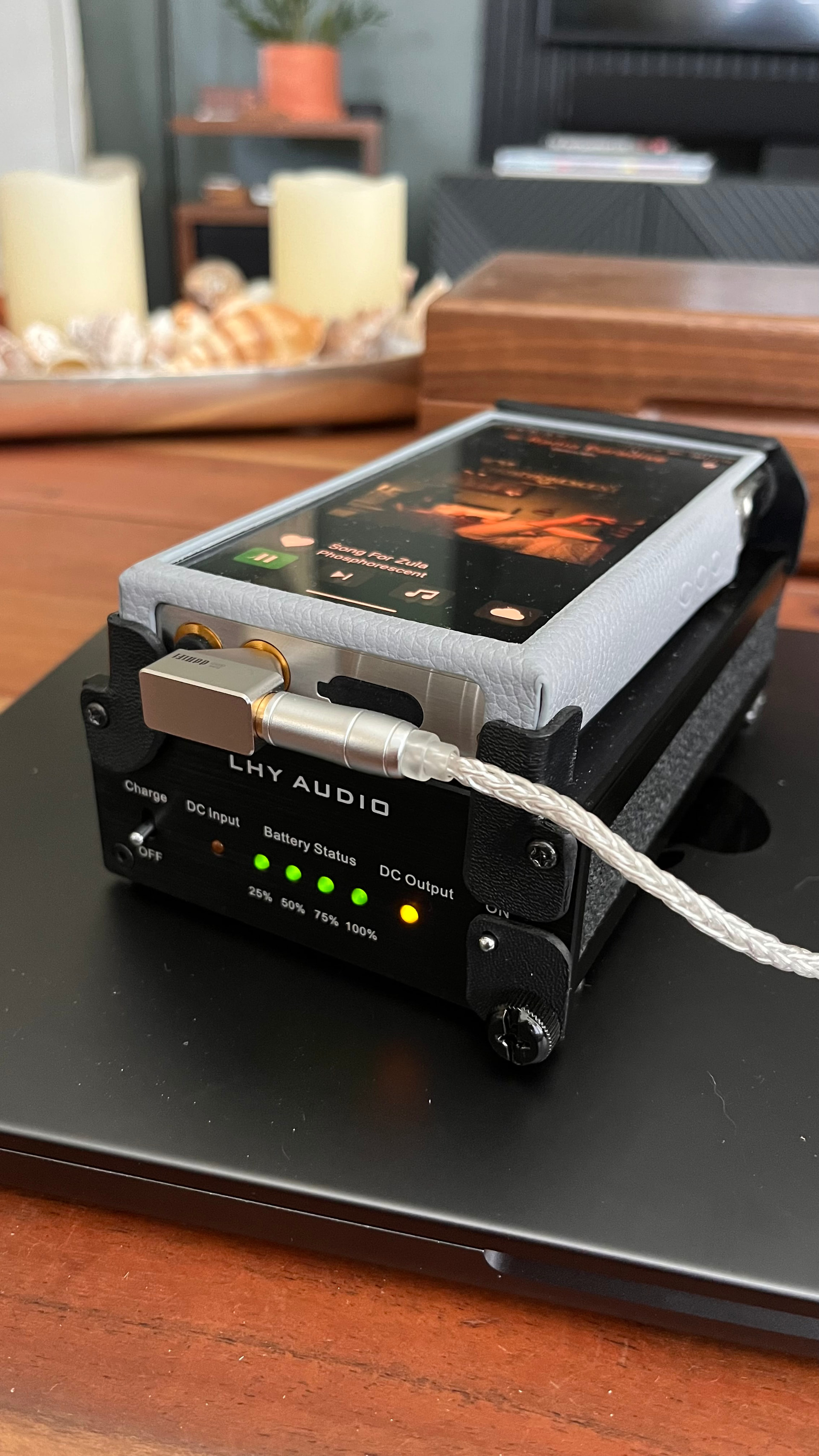

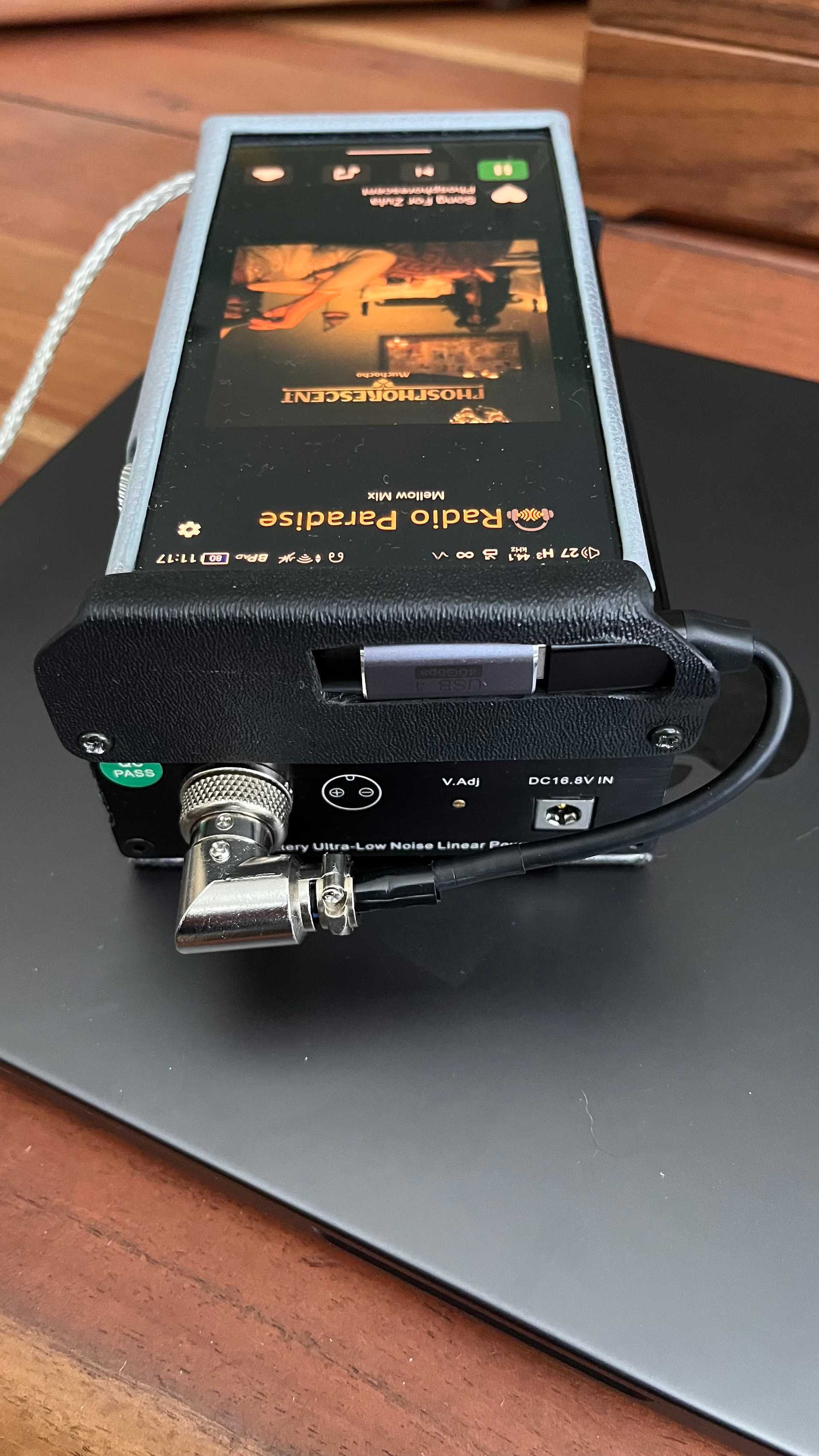

Sources matter more than many know. This $150 battery linear power supply with a few mods feeds both the DAC and AMP of DX340. The circuit that enables and handles charging of the 2 internal batteries is automatically bypassed when 9V up to 12V is detected on the USB-C port but only when music is playing. Pause the music and it switches back to internal battery. Now it’s quick to ‘disconnect’ and just use the 340. Anantar Ultimate V4 | Official Project Page

The linear regulation is MUCH quieter than the internal power circuits. It’s one of those you don’t know it’s there until it’s gone kinda thing :wink: Oh and the LHY has nearly 4x the runtime as internal batteries. Yes, it’s a brick but it’s approaching legit desktop SQ territory and yet I move it all over the place without issue.

Lana Del Rey - ‘Henry, come on’ simply comes to life. The room reflections that are probably synthetic sound amazing.


Here’s the CX02-3 mapped to 622B response. Just copy the block of txt, save it in a plain text file and import into Wavelet.

GraphicEQ: 20 -1.5; 21 -1.5; 22 -1.5; 23 -1.6; 24 -1.6; 26 -1.6; 27 -1.7; 29 -1.7; 30 -1.8; 32 -1.8; 34 -1.9; 36 -1.9; 38 -2.0; 40 -2.1; 43 -2.1; 45 -2.2; 48 -2.3; 50 -2.3; 53 -2.4; 56 -2.5; 59 -2.5; 63 -2.6; 66 -2.7; 70 -2.7; 74 -2.8; 78 -2.8; 83 -2.9; 87 -2.9; 92 -2.9; 97 -2.9; 103 -2.9; 109 -2.9; 115 -2.9; 121 -2.9; 128 -2.8; 136 -2.8; 143 -2.7; 151 -2.7; 160 -2.6; 169 -2.5; 178 -2.4; 188 -2.3; 199 -2.3; 210 -2.2; 222 -2.1; 235 -2.0; 248 -1.9; 262 -1.9; 277 -1.8; 292 -1.7; 309 -1.6; 326 -1.5; 345 -1.4; 364 -1.3; 385 -1.2; 406 -1.1; 429 -1.0; 453 -0.9; 479 -0.7; 506 -0.5; 534 -0.4; 565 -0.2; 596 -0.1; 630 0.0; 665 -0.0; 703 -0.1; 743 -0.2; 784 -0.4; 829 -0.6; 875 -0.8; 924 -1.0; 977 -1.2; 1032 -1.3; 1090 -1.5; 1151 -1.7; 1216 -1.9; 1284 -2.1; 1357 -2.3; 1433 -2.5; 1514 -2.8; 1599 -3.0; 1689 -3.1; 1784 -3.2; 1885 -3.2; 1991 -3.2; 2103 -3.1; 2221 -3.1; 2347 -3.0; 2479 -3.0; 2618 -3.0; 2766 -3.1; 2921 -3.3; 3086 -3.6; 3260 -3.9; 3443 -4.2; 3637 -4.2; 3842 -3.9; 4058 -3.5; 4287 -3.1; 4528 -2.7; 4783 -2.4; 5052 -2.3; 5337 -2.2; 5637 -2.4; 5955 -2.7; 6290 -3.1; 6644 -3.7; 7018 -4.1; 7414 -4.1; 7831 -3.7; 8272 -3.3; 8738 -2.9; 9230 -2.9; 9749 -3.1; 10298 -3.5; 10878 -3.8; 11490 -3.6; 12137 -3.0; 12821 -2.4; 13543 -2.0; 14305 -1.7; 15110 -1.5; 15961 -1.4; 16860 -1.3; 17809 -1.3; 18812 -1.3; 19871 -1.3

or here is the straight output to enter in manually into whatever PEQ program you wish. I like Wavelet as it allows a % ‘strength’ to be adjusted on the PEQ so say you like it what it does to the sound but it’s a little ‘too’ much…dial it back to 50% while retaining the ‘curve’. The peaks and troughs simply get 50% more shallow vs 100% strength.

Preamp: -0.5 dB
Filter 1: ON PK Fc 20 Hz Gain -2.4 dB Q 0.700
Filter 2: ON PK Fc 78 Hz Gain 1.3 dB Q 1.200
Filter 3: ON PK Fc 87 Hz Gain -4.6 dB Q 0.500
Filter 4: ON PK Fc 260 Hz Gain -1.2 dB Q 1.200
Filter 5: ON PK Fc 700 Hz Gain 1.2 dB Q 1.300
Filter 6: ON PK Fc 1600 Hz Gain -1.7 dB Q 1.500
Filter 7: ON PK Fc 3900 Hz Gain -1.6 dB Q 2.000
Filter 8: ON PK Fc 5500 Hz Gain 2.7 dB Q 2.000
Filter 9: ON PK Fc 6900 Hz Gain -1.5 dB Q 2.000
Filter 10: ON PK Fc 7100 Hz Gain -3.5 dB Q 0.500

3 Likes

You’re too kind, dude.

3 Likes

Wowzers - I respect the hell out of this level of audiophile, but I tend to appreciate this level from afar for sure. I will say that it looks like the EQ is bang on, so I assume it sounds pretty good. I thought the 622b was a good IEM, not blow my mind amazing, but definitely good, no doubt. I think I’d prefer the bass levels of the stock Silver Flash, though :slight_smile:

1 Like

Graphs are misleading. The apparent level of bass really doesn’t change to my ear only the upper mids/treble.

I’m retired. I have time. Well not that much time but time to do what ever I want…until the dirt nap :wink:
