The connector for the audio jack from the DENON DA-10 came loose (the plastic broke down somehow). I don’t see anything else immediately wrong with it, so I wanted to try just replacing the connector between the audio jack and the main board.
But I don’t know what to look for. I need to replace the male connector. The krimped cables look fine to me, no need to replace those… I think
Looks like some kind of 8pin pci connector. look for it that way and maybe you get lucky?
can’t find anything resembling this. The closest I got was a JST ZH connector but those seem slightly different too…I think. I don’t have one on hand to compare/test.
what is on the other end? Also, can you get a pic of the entire cable? Do you need THIS plug or the other end? Also, on the connector are there any numbers / letters?
It’s an imgur album, you can click on the picture to see the rest.
I’d need the plug that combines the cables. It was that way on both ends.
I couldn’t see any numbers related to the connector.
I tried a few of the numbers around that area but they either lead nowhere or refer to resistors and such, not the connector.
You could try Amazon or this site
CE8172WH
Or find a local electronics repair shop They would not only be able to help but may have exactly that part.
The website I linked has a few that are close but not sure they are exact. Just a simple 8 pin flat plug. When I did a search for 8 pin pc board connectors all kinds of stuff popped up. Good luck.
the more I search the more unsure I am…

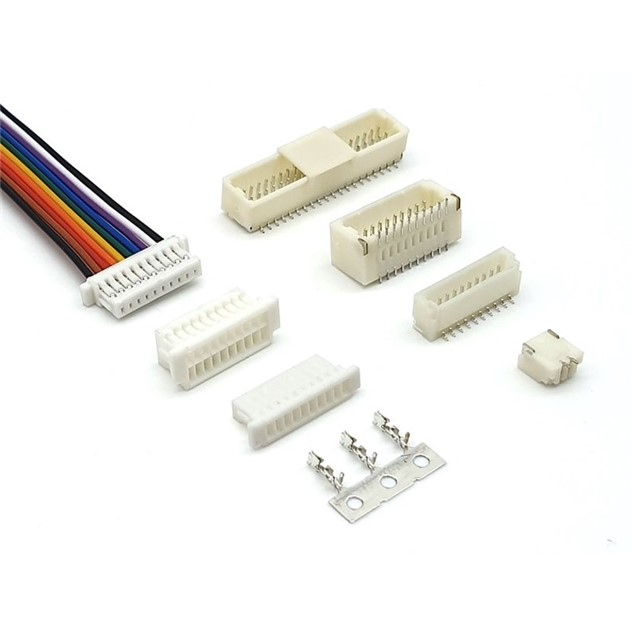

Closest Iahve found sofar is this:
I think you might be right. I’ll have to go to a shop in person.
There are just too many connector types out there.
