I was searching for something else and I saw this.

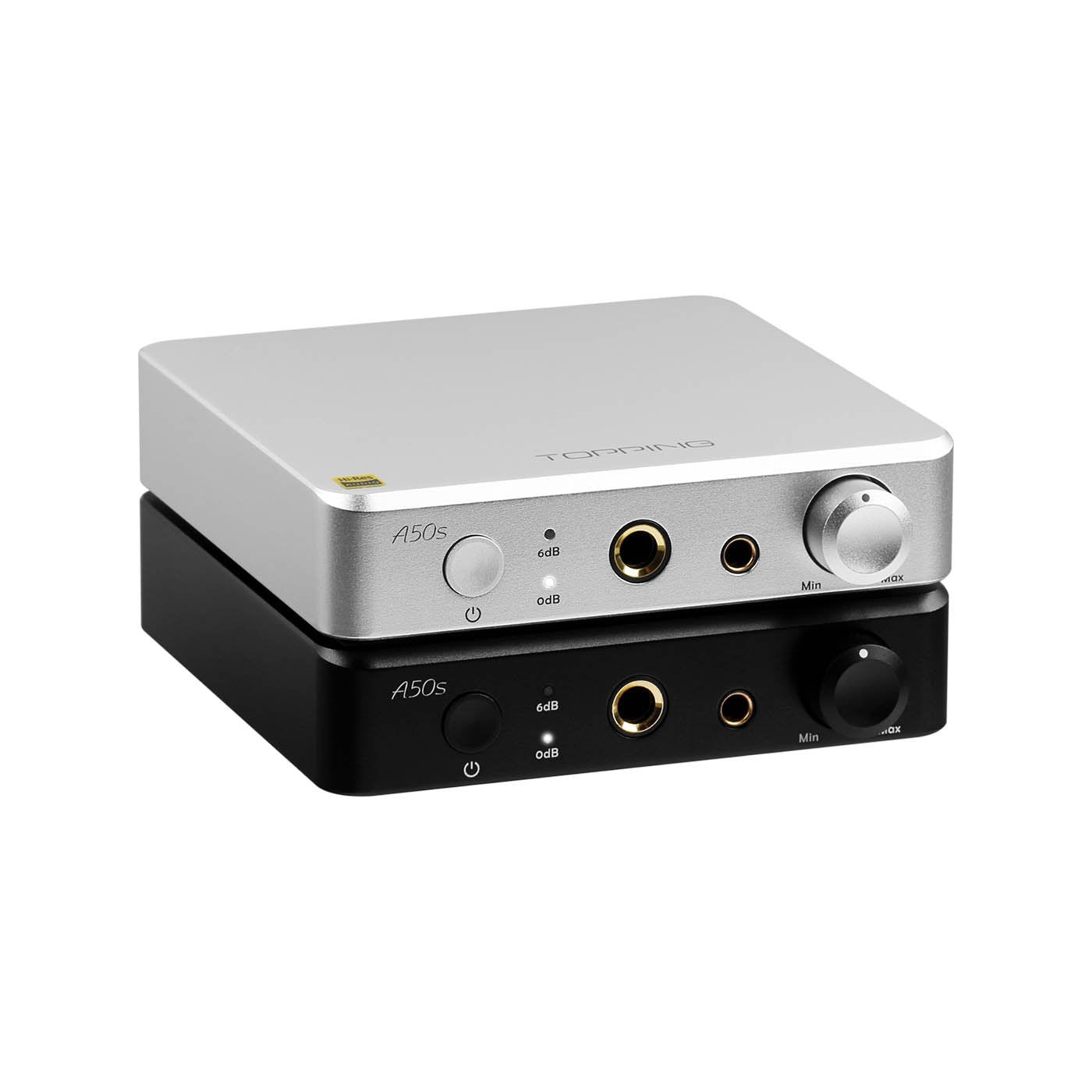

Topping A50 Desktop Hi-Res Headphone Amplifier 2.5mm Balanced Out Amp D50s P50 | Consumer Electronics, TV, Video & Home Audio, Home Audio | eBay!
170$US
Possible op-amp rolling
Claimed 2.2 watts
Claimed 123dB SNR
1/4 inch + 3.5mm + 2.5mm balanced out.
Non-balanced: 1.1w @ 32 ohms / 160mw @ 300 ohms.
Balanced: 2.2w @ 64 ohms / 640mw @ 300 ohms.
You can found topping A50 on hifigo, shenzhenaduio, apos and aliexpress now
1 Like
Yup, it’s everywhere now… finally.
Too bad, I already bought a JDS Labs Atom last month.
Waiting for Amir/ASR’s measurements now, heh.
Can some one tell me why 2.5mm is balanced while 3.5 isn’t , also why the need for 2.5mm ?
M0N
December 7, 2019, 3:36pm
6
There can be 3.5 mm balanced (as used on ifi products and other stuff too), but 3.5 mm trs is not balanced because it uses a shared ground. 2.5mm trrs is balanced because there are separate grounds for each channel. 2.5mm is used so people don’t go plugging an unbalanced connector in there and causing damage to the headphones or the amp
130$ instead of 170$ on (mass)drop if bought with the D50S for 185$ (instead of 240$).
So 315$ for both.
Edit: You have to choose “D50S and A50 combo” in the list, otherwise just buying the D50S and adding another item (A50) will cost 335$. Huh, okay.
I picked up the A50/D50s/P50 combo the other day. Liking it so far. Using it with t60rp’s. Plenty of power even on low gain.
3 Likes
