Hey sorry, another question. Can I split the atom pre out to the a100 and powered speakers?
Yeah you could no problem, you would just want an rca splitter. That being said I think now you might want to instead just split from the passthrough on the thx so you donāt have double volume control
So it would go 789 pass, to splitter, with one going to atom and powered speakers, and the other side going to the emotiva
Ah, duly noted, makes sense. Thanks!
That way you can avoid the double volume control issue with the atom too and it is just a cleaner option overall

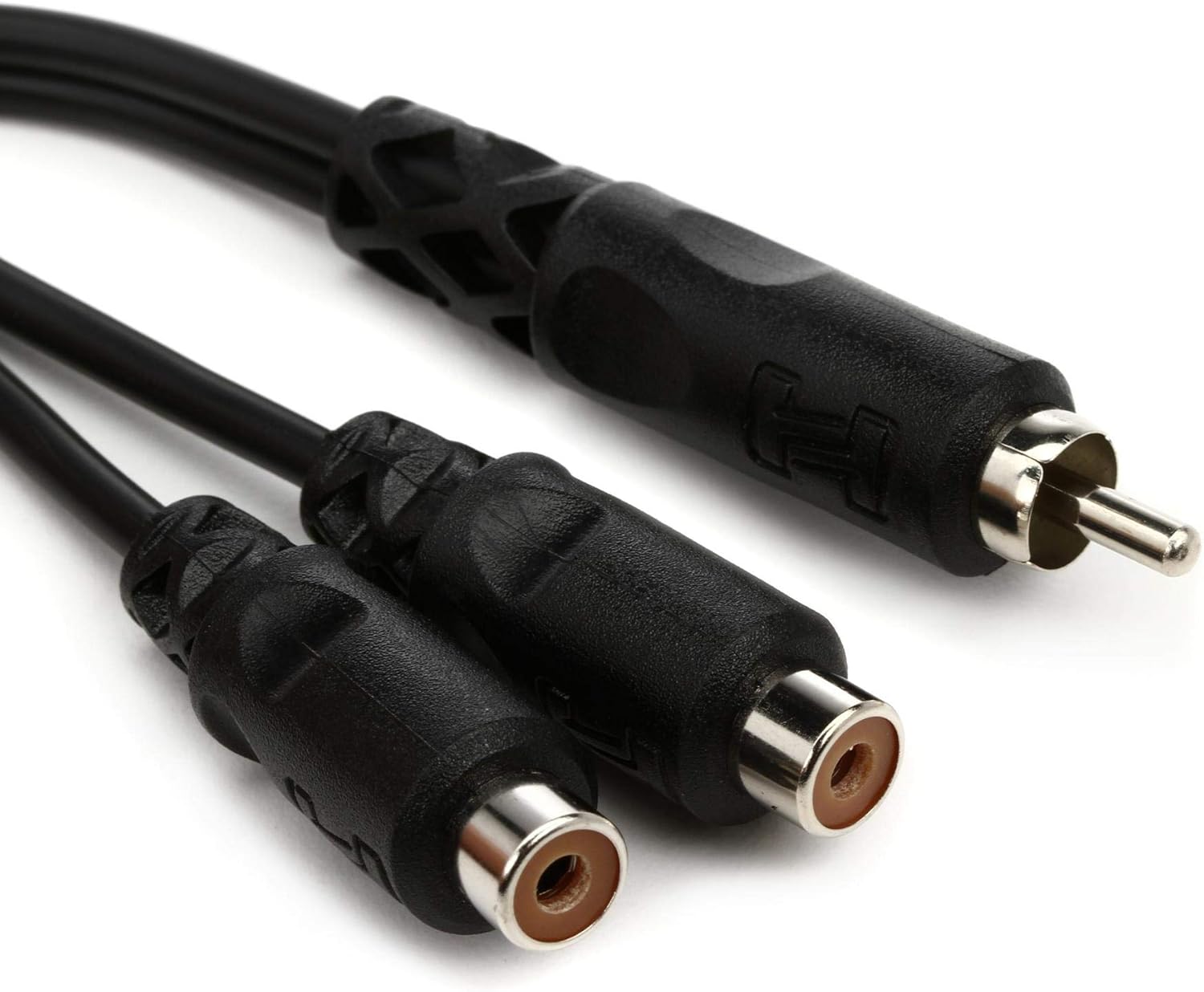

Just grab two of these and you are good to go
Cool, thanks for the link. I was getting confused by some of the listed products when I searched.
https://www.amazon.com/Mediabridge-ULTRA-RCA-Y-Adapter-Inches/dp/B005DL2OVE/ref=sr_1_10?keywords=rca+splitter&qid=1579127019&sr=8-10
https://www.amazon.com/OCR-Female-Speaker-Splitter-Adapter/dp/B0159MA936/ref=sr_1_13?keywords=rca+splitter&qid=1579127019&sr=8-13
Donāt understand why itās color coded red/white when youād be splitting the red and white separately, if that makes sense. Unless thereās some other use.
So the first one is for a subwoofer with a single jack input, so it takes the left and right and combines them for a LFE input
Iām glad I asked so I didnāt end up buying the wrong thing like an idiot.
For speakers, this, or TP60?
If you get this one you have added benefit of a supposedly great headphone amp.
1 Like
What is the best sounding headphone on this amp? I am on the search for the best sounding 600 ohm headphone. There are more but I am interested in the dt 880 vs dt 990 premium 600 ohm versions on this amp because of zeos review of the 880s was so good for this amp.
Disclaimer: This is an unsupported modification that may break your headphones or the amp! You do this at your own risk.
I donāt think I ever posted a proper picture of what I did:
Parts:
2x 2.54mm 2-pole pin Like this one
2x Vishay G200-series 220 Ohm (220 Ohm, glas covered wire-wound resistor, the important part is >3 W rating)
Cost: ~1ā¬ or $1

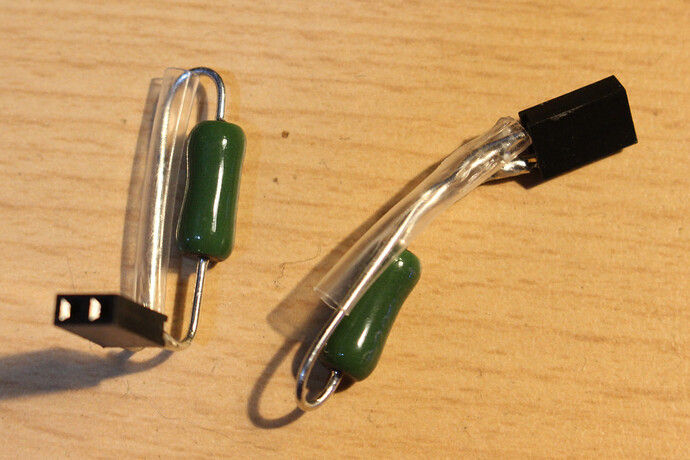

I put a piece of heatshrink over the free leg. They are bent like this to prevent them making contact with anything in the amp.

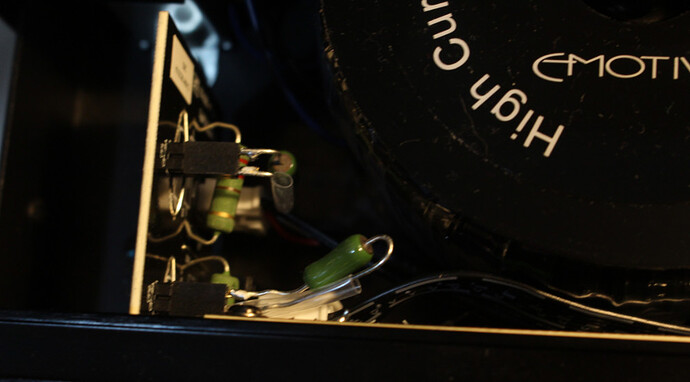

This is them installed. As you can see, the 90Ā° bend avoids hitting the transformer, the āoff angleā one avoids the front circuit board.
You may rightfully ask yourself: WHY would you do this?
Simple answer: More power without all the noise, this is a speaker amp first, headphone amp second.
This mod (wich you can just unplug any time or replace with the supplied jumpers) lowers the output resistance to 110 Ohm (instead of 220 Ohm or ~0).
5 Likes
How much of a risk is there in doing this?
Very little.
You could still short out something on the front circuit board (the one between transformer and front panel).
1 Like
Ergo, just be mindful of what stuff is touching what, and you will be fine.
1 Like
how long was your average wait time from Emotiva? i ordered on the 16th and it still says unfulfilledā¦
16th june?
That would be fast in normal times, not to mention the thing.
Give it another few days.
yes June 16th, still says unfulfilled (first time buying from them) just not used to waiting this long, thank you
This help with any of the noise floor? Iāve noticed with throwing on my K550 (with the stock jumpers) that there is a noticeable noise floor, and it takes a big jump with the volume turned up (was sure not to have anything playing, cause I donāt feel like trashing anythingā¦ Looks up at Tanchim Cora At least not yetā¦ For scientific reasons, of courseā¦)
To an extent, yes. It is between factory and jumpers leaning towards the jumper end.
When the K550s are the only headphone you run of the BasX, leave it stock.
Alternative:
Put factory jumpers in place. Then buy yourself a 1/4 stereo jack and a pair of 110 Ohm Resistors and a 1/4 jack. Then you have an attenuator to plug in line with your headphones when you feel like it.
I meanā¦ The K550, several IEMs and Porta Pro X are the only two headphones I have on hand. My 4XX and DT990 Pro are both back locked in my locker back in my dorm roomā¦ ~2500 miles away.
I also would not be looking to eliminate the noise floor entirely, as I understand that just isnāt happening with something like this.
